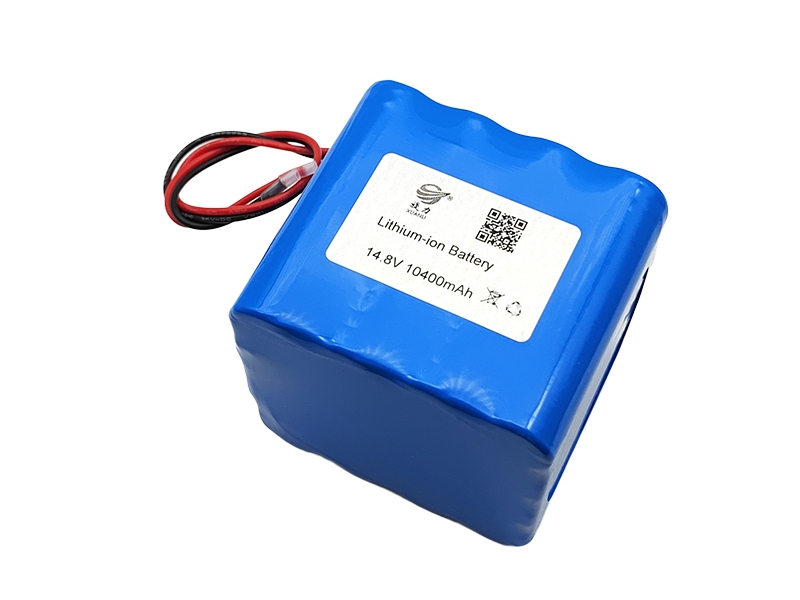

14.8V cylindrical lithium battery product model: XL 14.8V 10400mAh
14.8V cylindrical lithium battery technical parameters (specifically, it can be designed according to customer requirements - voltage/capacity/dimension/wiring)
Single cell battery model: 18650
· Single cell battery voltage: 3.7V
· Nominal voltage of battery pack after combination: 14.8V
· Capacity of single cell battery: 2.6Ah
· Combination method: 4 series 4 parallel
· Voltage range of combined battery: 12V - 16.8V
· Capacity of combined battery: 10.4Ah
· Battery pack power: 153.92Wh
· Battery pack size: 74*75*68mm
· Maximum discharge current: <10.4A
· Instantaneous discharge current: 20.8A - 31.2A
· Maximum charging current: 0.2 - 2C
· Number of charge and discharge cycles: >500 times
· Main chips: (Seiko, TI)
14.8V cylindrical lithium battery
· Complies with the relevant standards and requirements of the country for batteries
· All battery products upon leaving the factory have undergone calibration and testing and can be used directly.
